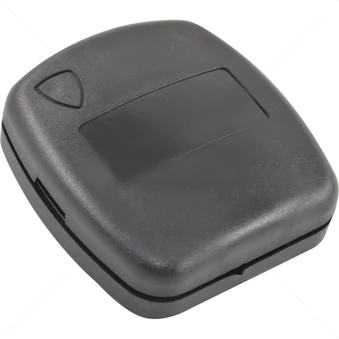

Sentry Single-Channel Learning Receiver

The SENTRY 403Mhz learning receiver is designed to receive a combination of the Binary, Trinary and French protocols.

It is a standard single channel receiver module that provides a 10 AMP potential free relay contact suitable for many applications, most commonly found in situations where a gate or door automation product is used.

Specifications

• Power Source: 12 – 24V AC/DC
• Frequency: 403.55MHz
• Receiver Type: Regenerative
• Physical Size: 90 x 66.5 x 30mm
• Weight: 70g
• Storage Temp: -10°C to +55°C
• Operating Temp: 0°C to 40°C
• Relay Contacts: Single Channel: 10A 250VAC
